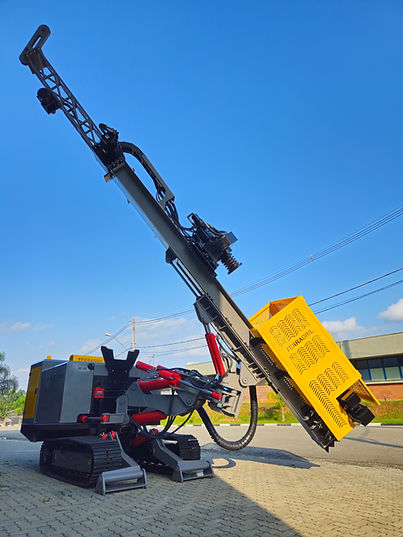

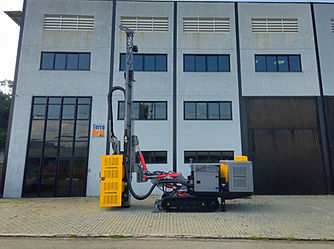

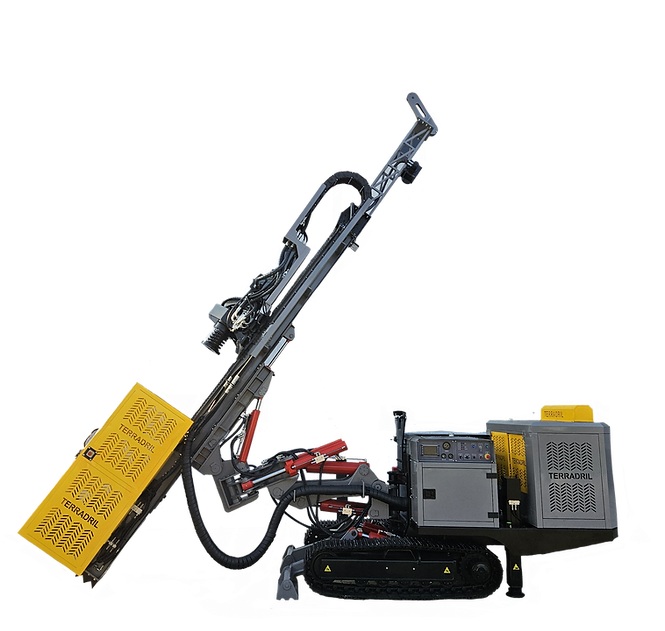

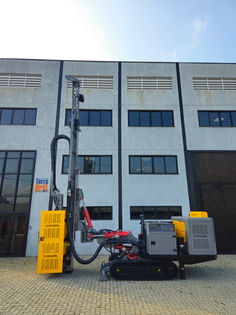

TR-12S - Micropile Drilling Rig
The incredible launch of TERRADRIL has come to revolutionize the market.
TERRADRIL provides this extraordinary and technological hydraulic drilling rig for micropiles and ground anchors, for the enhancement of existing foundations and construction of new foundations, groud stabilization and soil investigation. Our TR-12S has arrived to revolutionize the market and this micropile drilling rig equipment is high-performance enhancing the most advanced technological features of soil drilling equipment. We developed this well proven drill rig for ground anchor but also intended for many other drilling applications.
Discover the main technical specifications of TERRADRIL's Drilling Rig for micropiles and ground anchors.
TECHNICAL SPECIFICATIONS
DIESEL ENGINE - SERIES 12 - 4.12TCA
CLAMPS
Power ---------------------------- 152 cv @2.400 rpm
Diesel Tank ----------------------------------------- 90 L
Diameter ---------------------------------- 50 - 410 mm
Lifting capacity -------------------------------- 140 kN
HYDRAULIC SYSTEM
MAST
Pressão Máxima ----------------------------- 310 bar
Vazão Bomba Principal ----------------- 220 L/min
Vazão Bomba Secundária --------------- 62 L/min
Hydraulic Oil Tank ----------------------------- 330 L
ROTARY HEAD
Comprimento da Torre ------------------ 8.110 mm
Carrera Cabezal --------------------------- 3.300 mm
Força de Avanço ------------------------------- 75 kN
Força de Retração ----------------------------- 75 kN

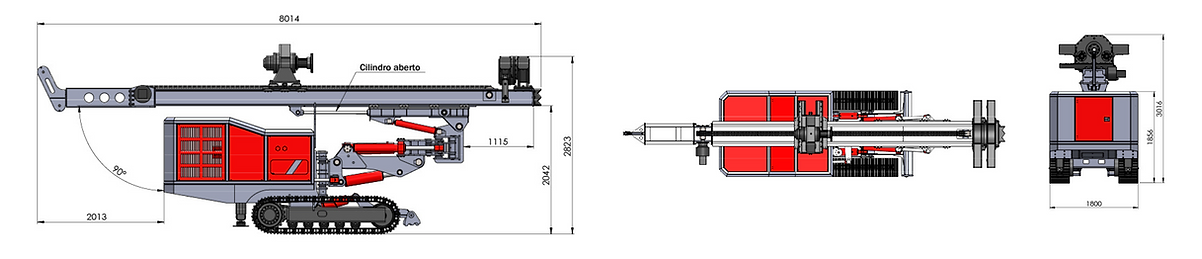

TRANSPORT DIMENSIONS
Max Torque -------------------------------- 15.500 Nm
Max Speed ------------------------------------ 150 rpm
Width x Length x Height x Weight
1.800 x 6.149 x 2.800 (mm) x 11.900 Kg
